ML Forge

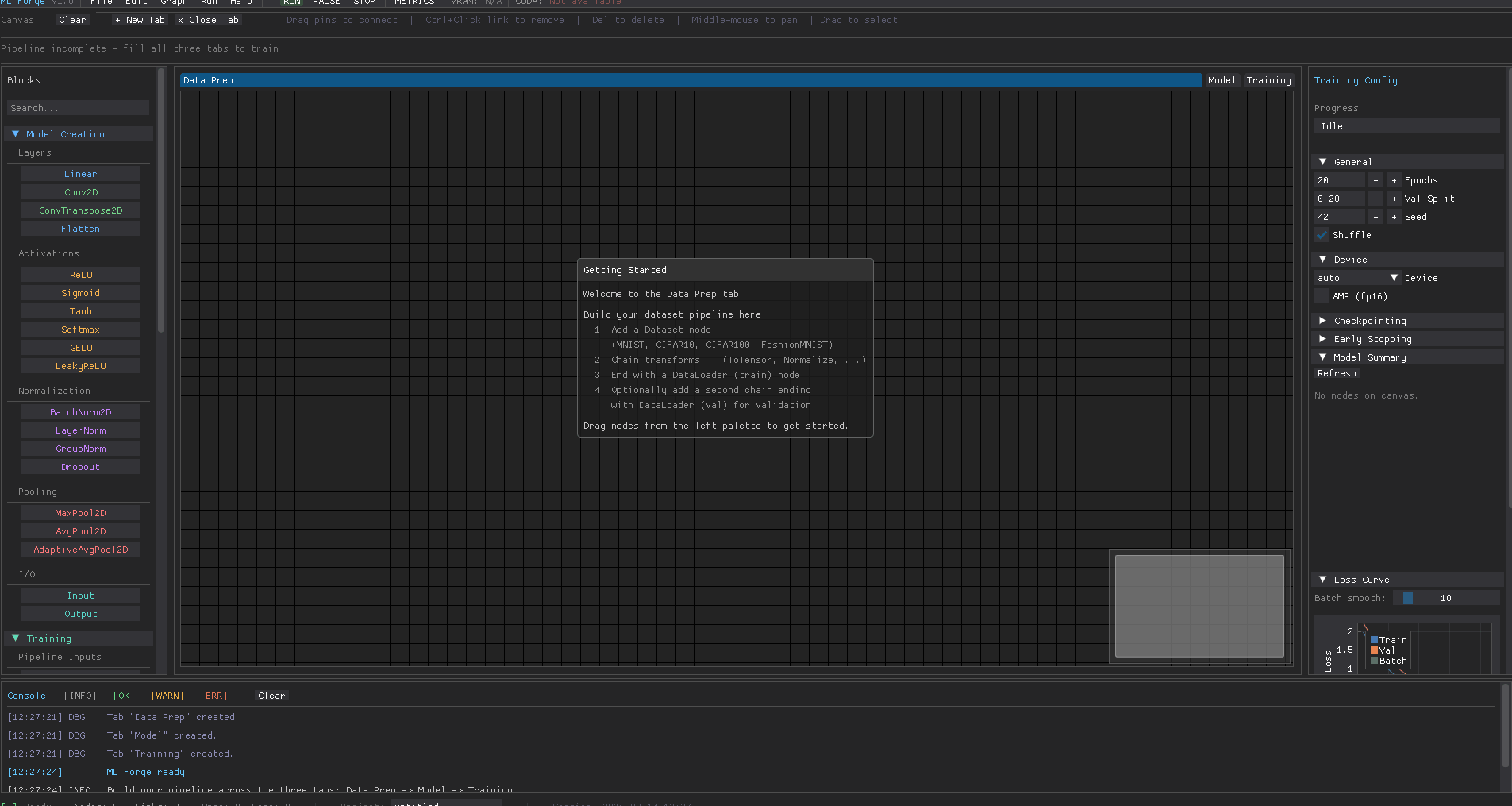

A visual PyTorch pipeline editor. Build, train and run image classification models without writing code. ML Forge screenshot —

MLForge v1.0.3

Additions:

Fixed missing package prefix on import in _build_criterion_and_optimizer
Preserved plot data in last_run on training completion so Metrics window works post-run
Implemented update_block_labels/reset_block_labels stubs with live epoch stats
Fixed GaussianBlur sigma range string parsing crashing at runtime
Derived _DATASET/_AUG/_LOSS/_OPTIMIZER_BLOCKS from blocks.SECTIONS

What it does

Visual pipeline - drag nodes onto a canvas, connect them with wires, and ML Forge generates and runs the training code for you
Three-tab workflow - Data Prep -> Model -> Training
Live training - watch loss curves update in real time, save checkpoints, run inference on your trained model
Export - export projects into clean PyTorch

Tutorial

Watch the MLForge tutorial video here: MLForge Tutorial

Requirements

IMPORTANT: PyTorch must be preinstalled for training, it is not installed as a dependency.

Python 3.10 or newer
PyTorch 2.0 or newer
torchvision

pip install torch torchvision

GPU training is automatic if CUDA is available. CPU and Apple MPS are also supported.

Quick Start

To install MLForge, enter the following in your command prompt

pip install zaina-ml-forge

Then

ml-forge

Cloning

git clone https://github.com/zaina-ml/ml-forge
python -m ml_forge

Building your first model

1. Data Prep tab

Add a Dataset node (MNIST, CIFAR10, CIFAR100, FashionMNIST, or ImageFolder)
Chain transforms: ToTensor is required, add Normalize for best results
End with a DataLoader (train) node
For proper validation, add a second chain (same dataset with train=False) ending with DataLoader (val)

2. Model tab

Start with an Input node - shape is auto-filled from your dataset
Add layers: Linear, Conv2D, ReLU, BatchNorm2D, Flatten, Dropout, etc.
End with an Output node - num classes is auto-filled from your dataset
Connect nodes by dragging from an output pin to an input pin
in_features and in_channels auto-fill when you connect layers
After a Flatten node, the next Linear’s in_features is calculated automatically

3. Training tab

Add these four nodes from the palette and wire them up:

DataLoaderBlock.images  ->  ModelBlock.images
ModelBlock.predictions  ->  Loss.pred
DataLoaderBlock.labels  ->  Loss.target
Loss.loss               ->  Optimizer.params

Configure epochs, device, checkpointing and early stopping in the right panel, then press RUN.

Keyboard shortcuts

Key	Action
`Del` / `Ctrl-Backspace`	Delete selected nodes
`Ctrl+S`	Save project
`Ctrl+Z`	Undo
`Ctrl+Y`	Redo
`Middle-drag`	Pan the canvas

Supported datasets

Dataset	Classes	Input shape
MNIST	10	1 × 28 × 28
FashionMNIST	10	1 × 28 × 28
CIFAR-10	10	3 × 32 × 32
CIFAR-100	100	3 × 32 × 32
ImageFolder	custom	3 × 224 × 224

Inference

After training, open Run -> Inference, browse to your checkpoint (.pth), and click Run Inference to sample from the test set and see top-k predictions.

Metrics

Click the METRICS button to see a summary of your training run: final loss, best validation accuracy, fit diagnosis, and loss/accuracy curves, you may also see the curves on the right training panel.

Saving and loading

Projects are saved as .mlf files (JSON). Use File -> Save / Save As or Ctrl+S.

Exporting code

File -> Export -> Python -> PyTorch generates a standalone train.py that reproduces your pipeline. No ML Forge required to run it.

Future Plans

Orient to a more beginner-friendly approach
Add custom block functionality

License

MIT
